Details
- 97.5% CEC efficiency
- Class II double-insulated enclosure
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for variable grid profiles
- More than a million hours of testing
- 25-year limited warranty
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd ed.)
- UL Listed

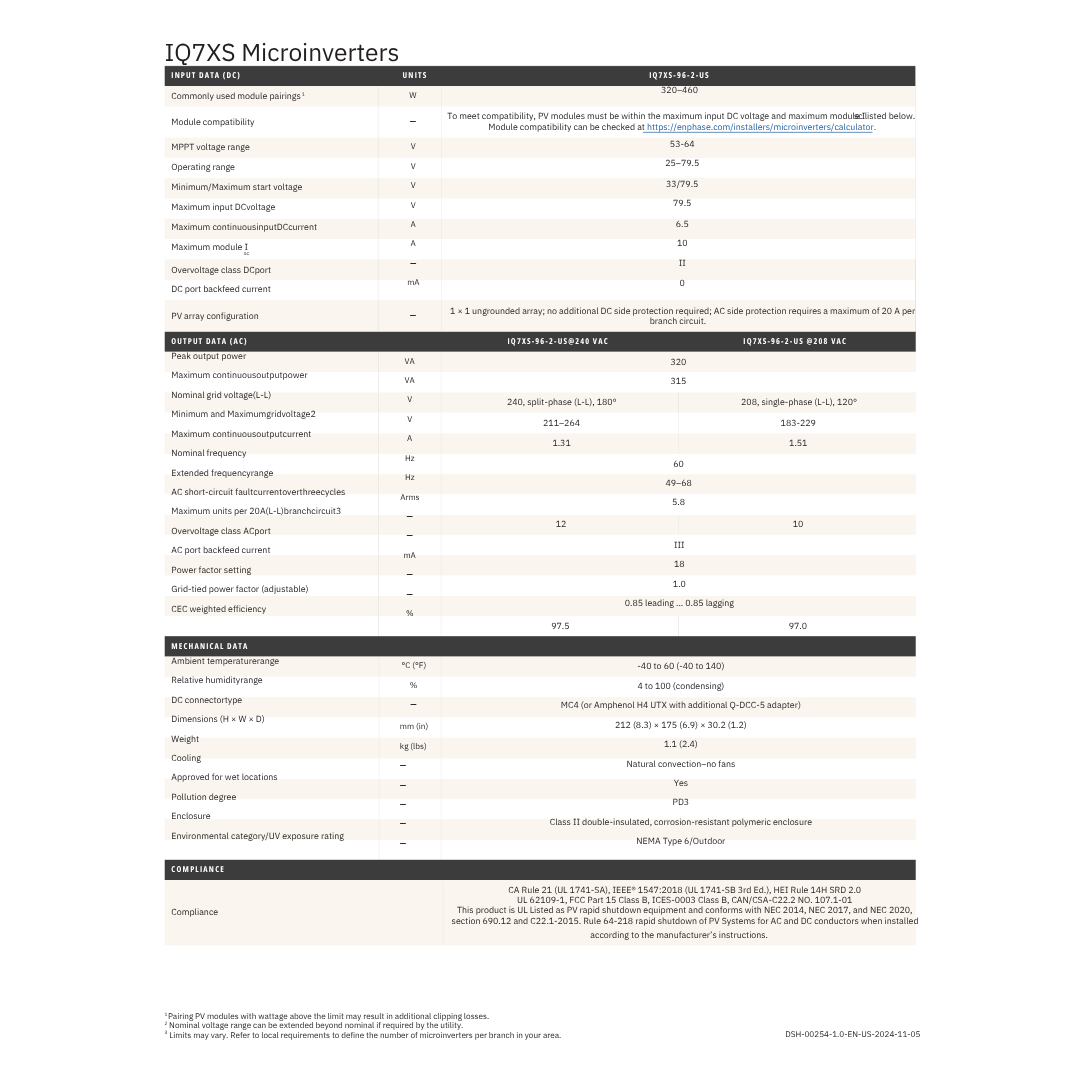

Technical Specifications:
- Peak output power: 320 VA
- Module pairing: 320–460 W
- Maximum continuous output power: 315 VA
- Operating range: 25–79.5 V
- Length: 212 mm
- Width: 175 mm
- Height: 30 mm
- Weight: 2.38 lbs
-
